SMC Large Rigging Plate

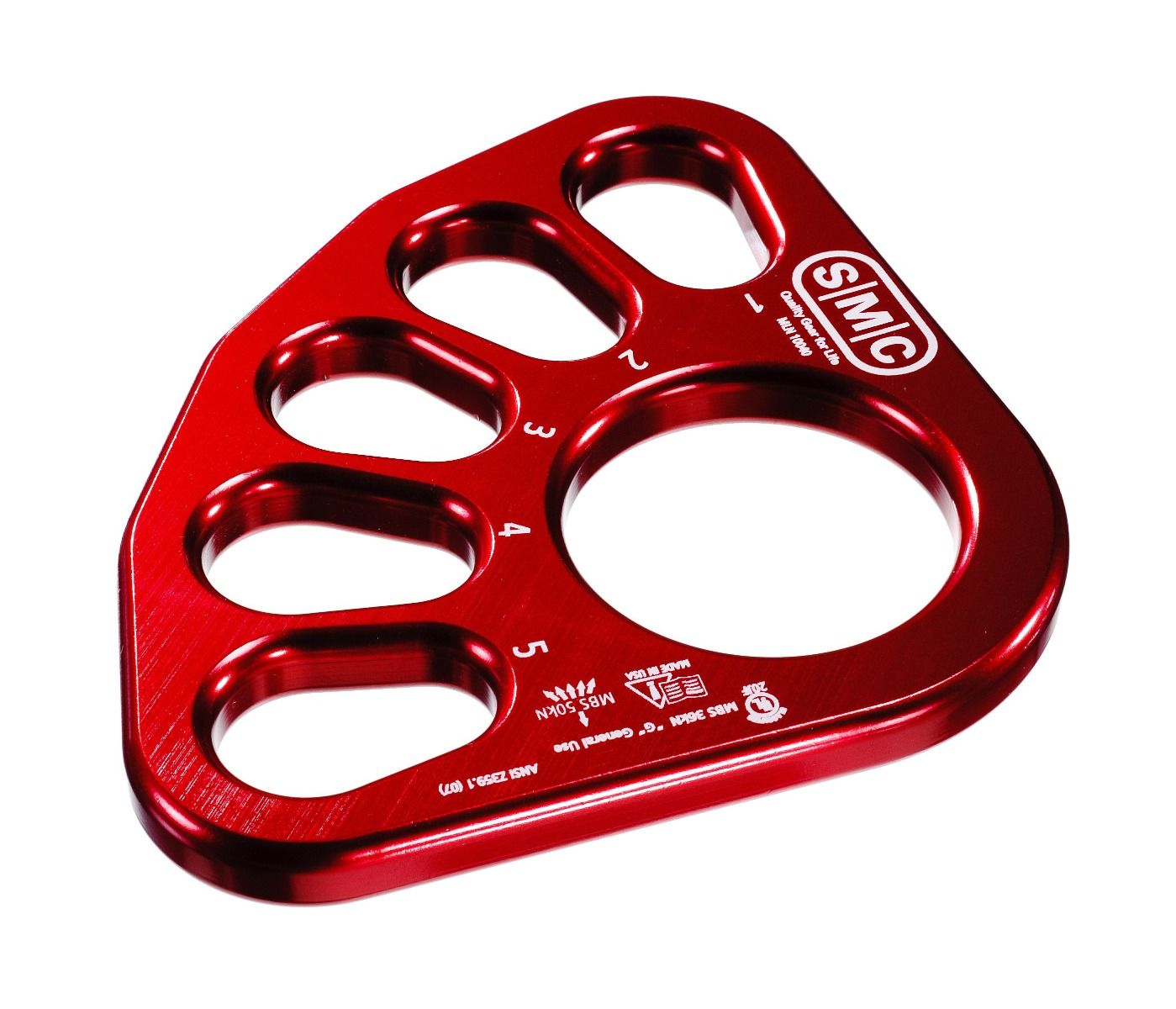

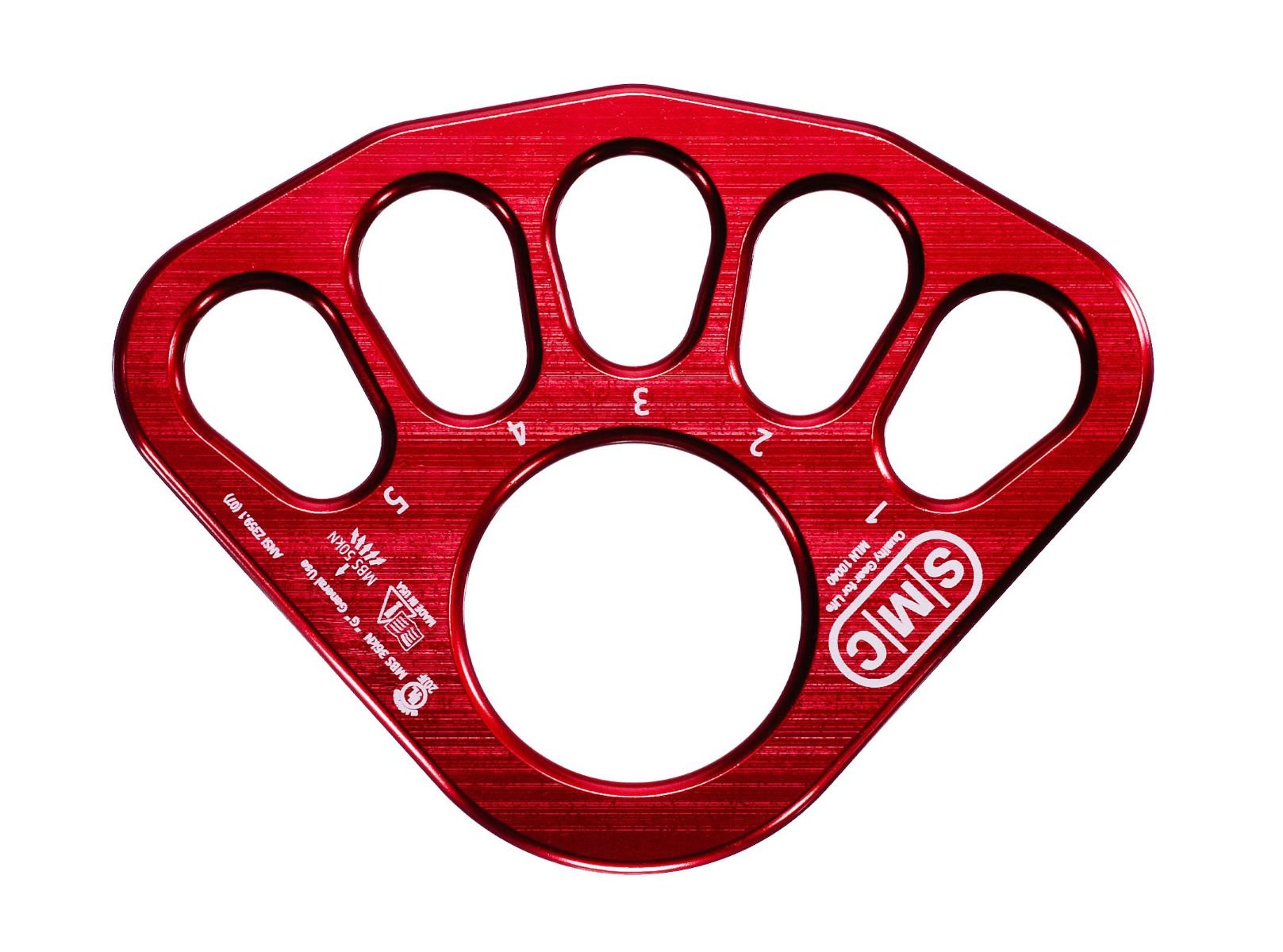

Rigging plates are indispensable and help make setting up a rope system quicker and safer. SMC's Rigging Plate is half the size of the bigger plates on the market yet it is just as strong. Features a single, large circular center hole that accepts numerous connections simultaneously plus five oversized, ovalized holes that are each designed to handle up to 2 large rescue. Holes are individually numbered to make it quick and easy to organize connections. All edges on the SMC Rigging Plate have been contoured so that they are easy on rope, webbing, carabiners and other connectors. CNC machined from 1/2'' thick aircraft quality aluminum and then anodized for quick identification and additional resistance to corrosion.

All SMC NFPA products are third party tested (by Underwriters Laboratories - UL) as required by NFPA 1983 standards.

APPLICATIONS:

• Construction
• Industrial Work & Rescue
• Telecommunications
• Mountaineering
• Mountain and Urban Rescue
• Caving
• Canyoneering

Certifications: Certified by Underwriter’s Laboratories to exceed the NFPA 1983 “G” - General Use requirement of 40kN

Material: Aluminum
Finish: Anodized
Dimensions: 7'' x 5.3'' x .5"
Weight: 11.4 oz (323g)
3 Sigma MBS: 50kN (11,240 lbf)
NFPA1983 Certified
Made In USA
