Petzl ROLLCLIP A

Pulley-carabiner that facilitates installation of the rope when pulley is connected to the anchor.

ROLLCLIP A is a pulley-carabiner with a gate opening on the pulley side that facilitates installation of the rope when the pulley is fixed to the anchor. It is available with an automatic TRIACT-LOCK locking system, or without a locking system. ROLLCLIP A may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.

• Easier handling:
  - sheave mounted on sealed ball bearings for excellent efficiency

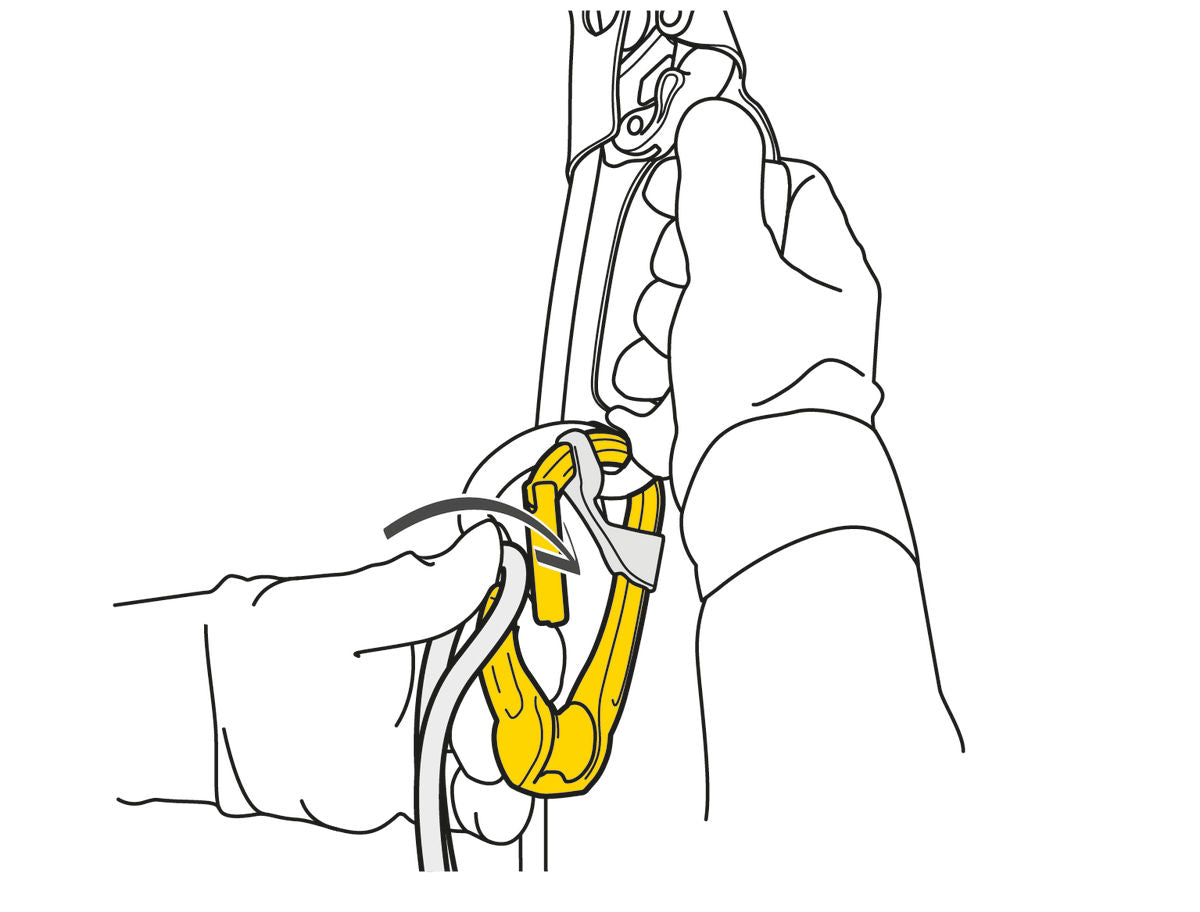

  - gate opening on the pulley side facilitates installation of the rope when the pulley is fixed to the anchor

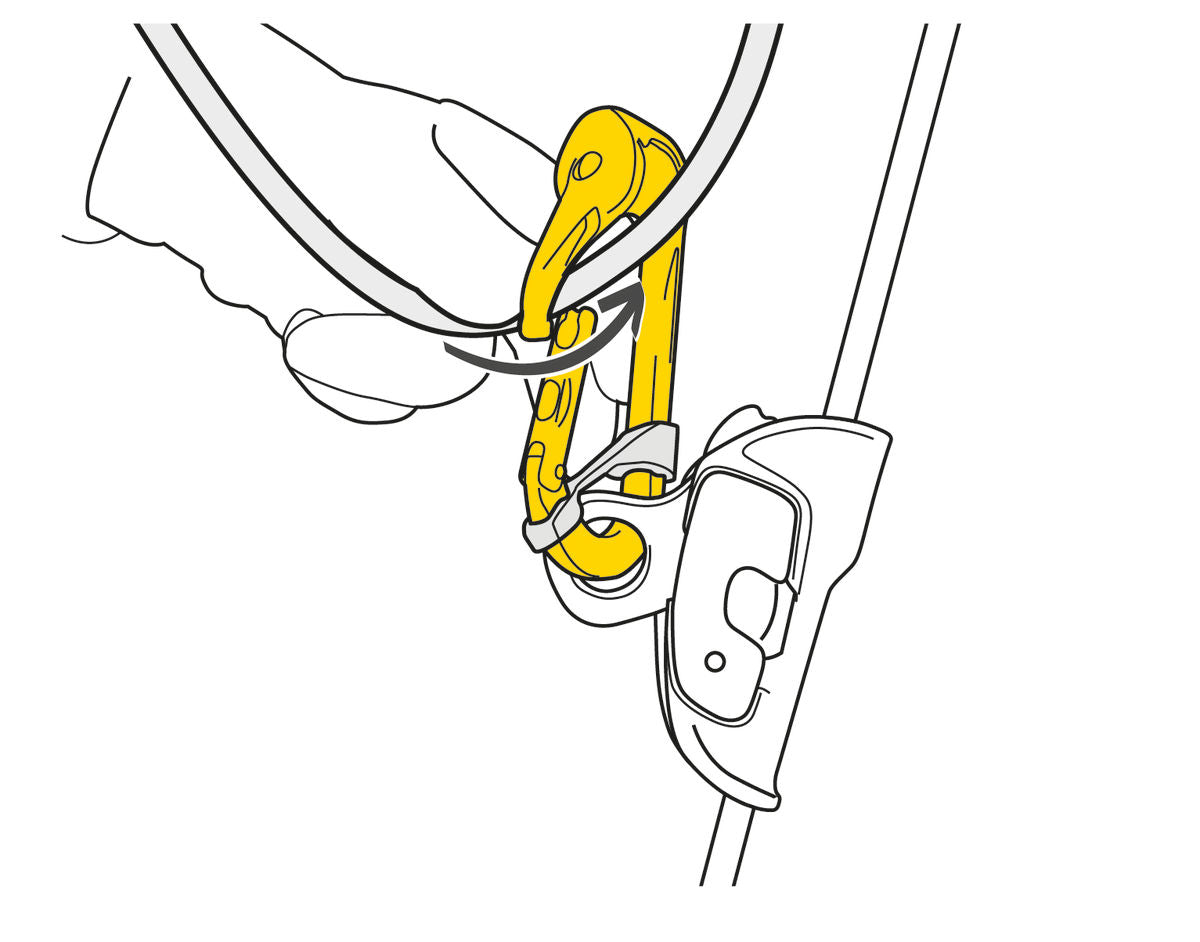

  - may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis and to limit the risk of it flipping
  - Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place
• H cross-section of carabiner:
  - ensures an improved strength-to-weight ratio
  - protects markings from abrasion

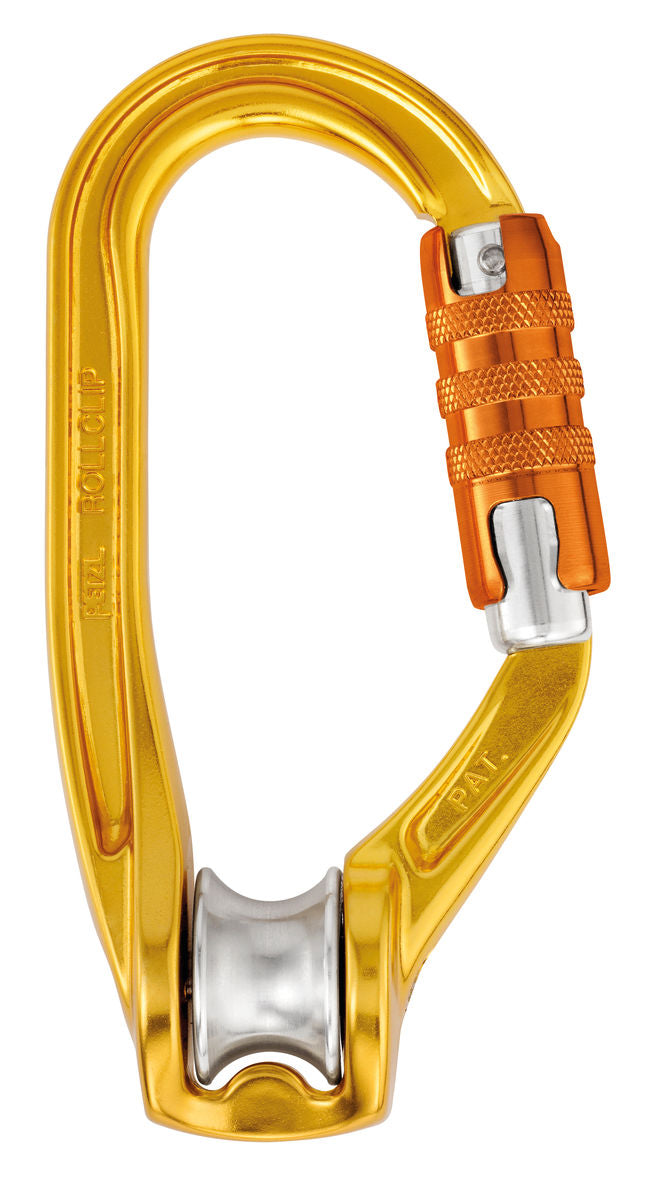

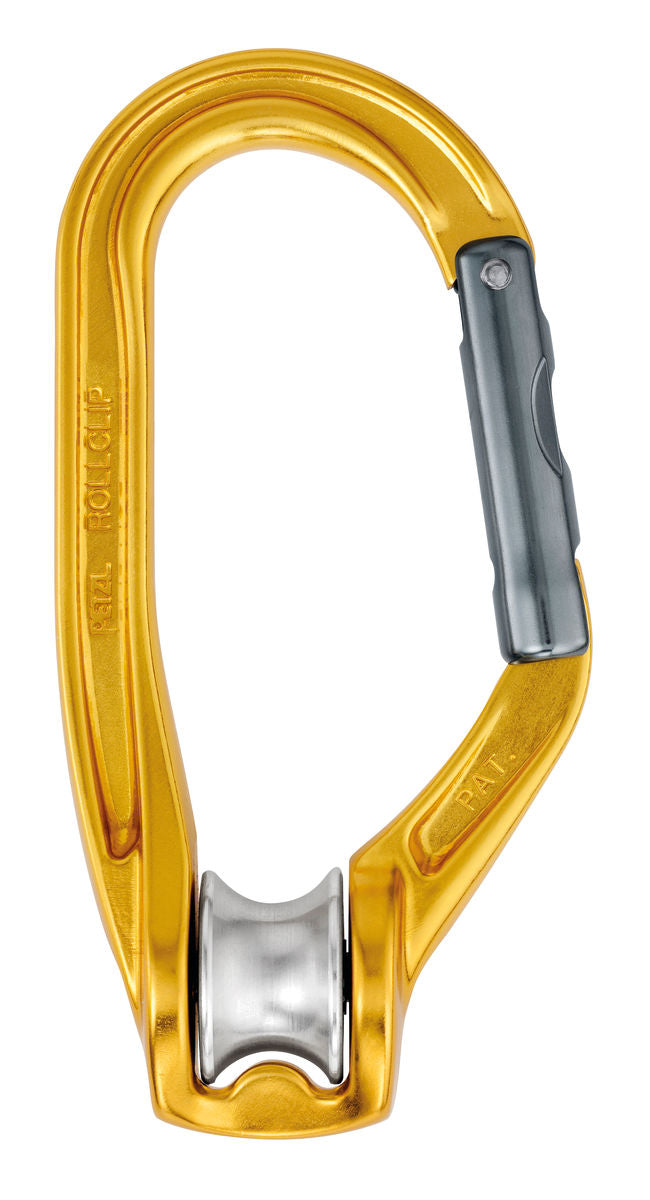

Available in versions with or without TRIACT-LOCK locking system

Material(s): aluminum
Min. rope diameter: 7mm
Max. rope diameter: 13mm
Sheave diameter: 18mm
Maximum working load: 2 x 2 = 4kN
Efficiency: 85%
Major axis strength: 20kN
Minor axis strength: 8kN
Open gate strength: 7kN
Gate Opening: 22mm -TriAct Lock, 25mm - Snap Gate
Certifications: CE EN 362, EN 12275, EN 12278, UKCA, EAC -TriAct Lock, CE EN 12275, EN 12278, UKCA, EAC - Snap Gate
Weight: 115g - TriAct Lock, 105g - Snap Gate
