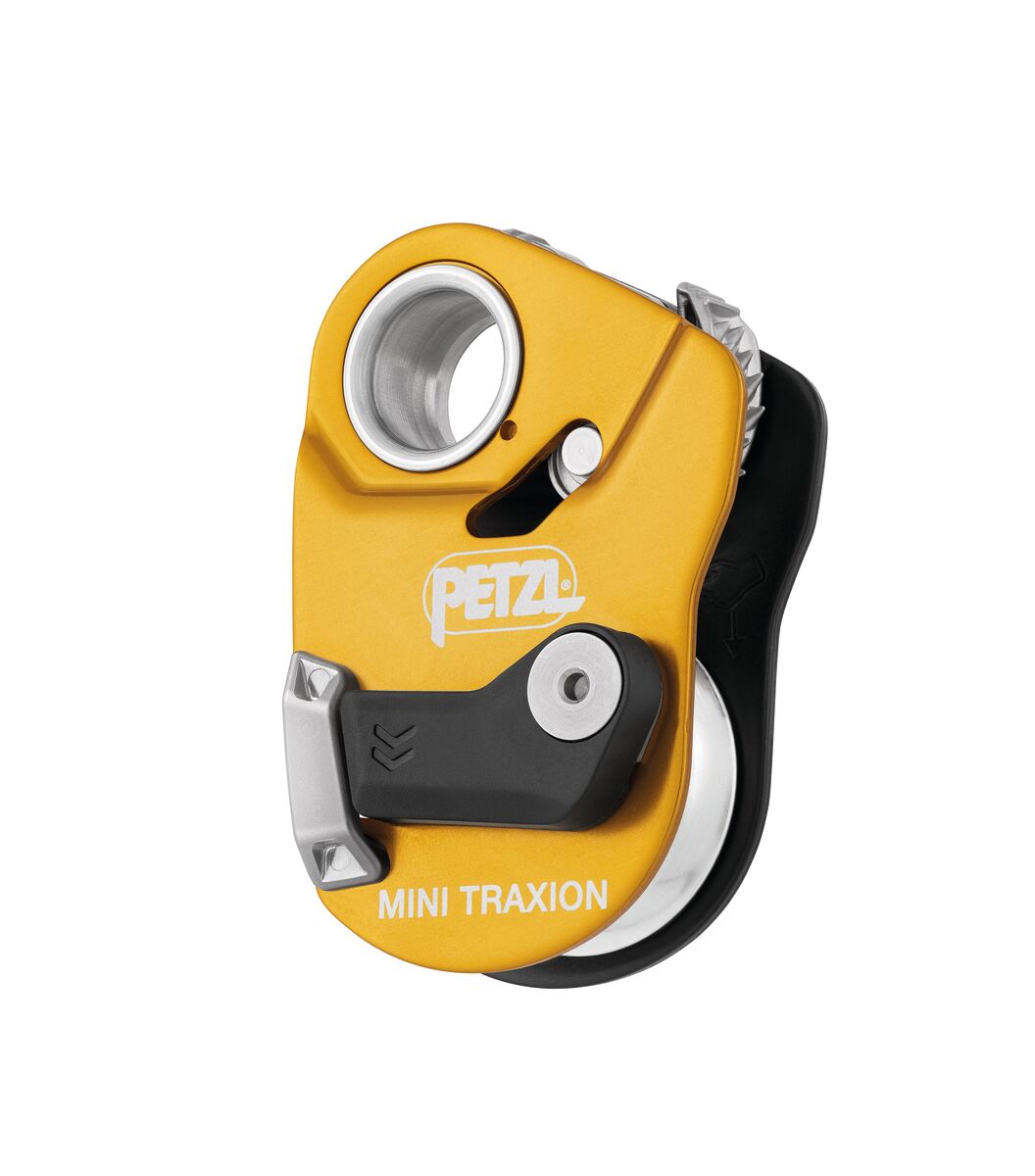

Petzl Mini Traxion

High-efficiency, openable progress-capture pulley

Designed for hauling and rescue, MINI TRAXION is an openable progress-capture pulley that allows the rope to be installed while the pulley is connected to the anchor. The large-diameter sheave mounted on sealed ball bearings provides excellent efficiency (93 %). The cam can be locked in the open position so the device can be used as a simple pulley.

• High-efficiency progress-capture pulley designed for hauling and rescue:
  - Large diameter aluminum sheave mounted on sealed ball bearings for excellent efficiency (93 %), even when hauling heavy loads
  - Toothed cam with self-cleaning slot optimizes performance under a variety of conditions, such as when the ropes are frozen or dirty
  - For use on 7 to 11 mm diameter ropes
• Simple to use:
  - Openable side plate allows the rope to be easily installed while the pulley is connected to the anchor, limiting the risk of dropping it
  - Triple-action opening of the moving side plate is quick and easy, even with gloves
  - May be used as a simple pulley by locking the cam in the raised position
  - Compact and lightweight (150g)
• Durable:
  - Special side plate design protects the rope path
  - Stainless steel toothed cam for optimal durability

Weight: 150g

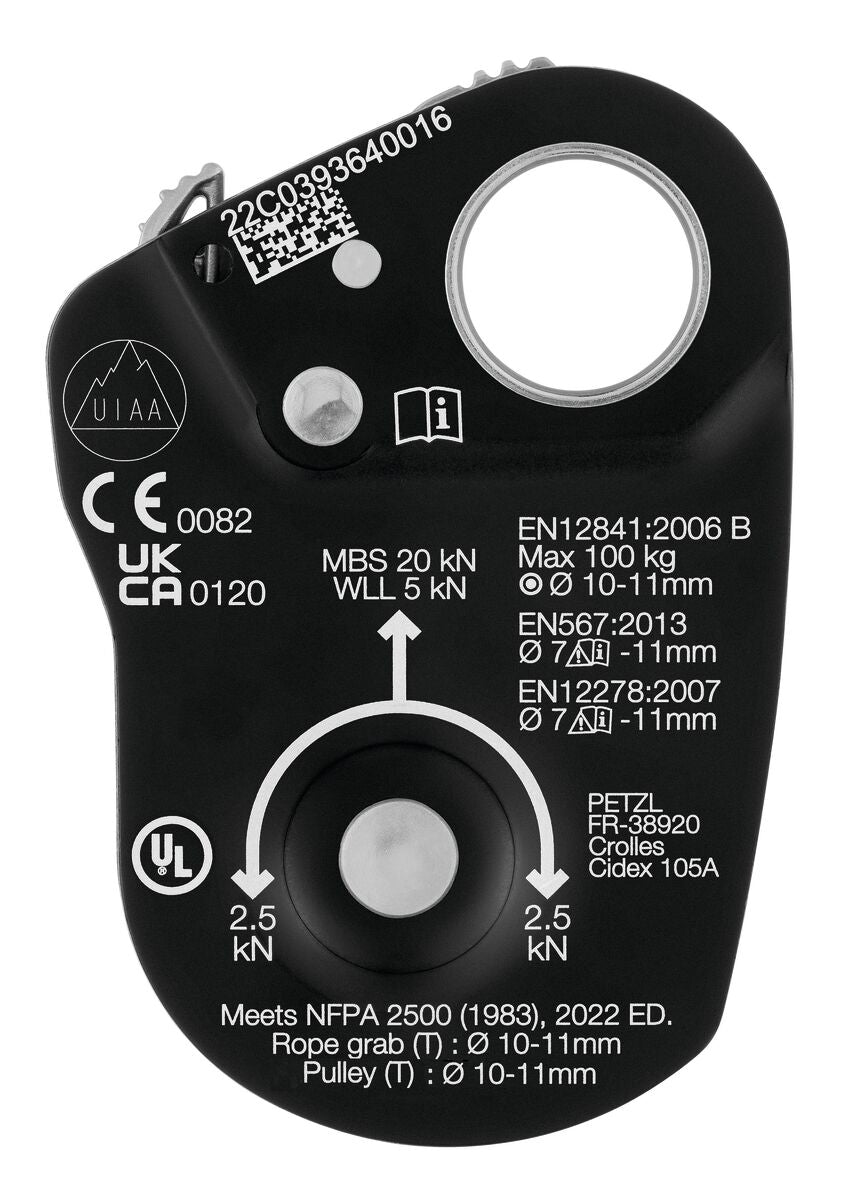

Certification(s): CE EN 567, CE EN 12278, CE EN 12841 type B, NFPA 2500 Technical Use Pulley and Rope grab, XF 494: FZL-Z-Q 8.5/11, XF 494: FZL-H-Q 8.5/11
Material(s): Aluminum, stainless steel, nylon
Min. rope diameter: 7mm
Max. rope diameter: 11mm
Sheave type: Sealed ball bearings
Sheave diameter: 32mm
Working load: 2 x 2.5 = 5kN
Breaking strength: 2 x 10 = 20kN
Working load as progress capture pulley: 2.5kN
Breaking strength as progress capture pulley: 4kN
Efficiency: 93%
Compatible with the RAD LINE 6 mm cord
Compatible with the PUR’LINE 6 mm cord only for hauling a pack
