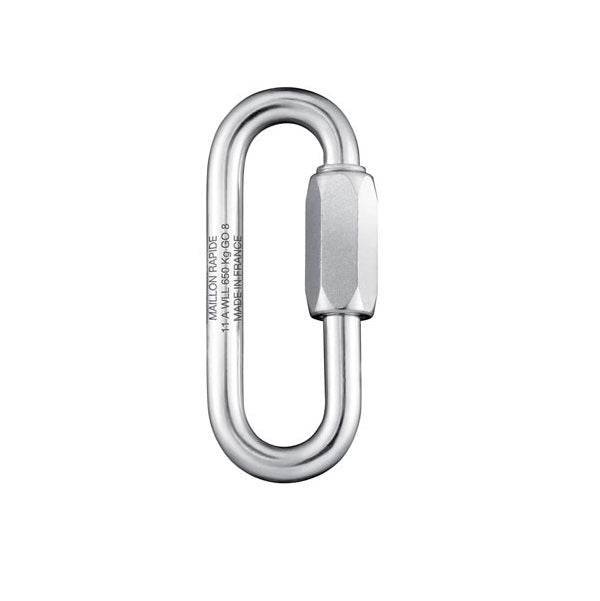

Maillon Rapide Oval Wide

Wide mouth screw-links are useful when a thick rope or chain needs to be attached, or the extra length of the link is an advantage. Often these are needed to connect to eye-bolts or other anchors, when the thickness of the anchor requires the wider opening.

• Consider breaking load limit in kN engraved to the rod.
• Visual check of complete nut screwing compulsory, no thread must be showing.
• Maillon Rapide quick links are only to be loaded along the major axis.
• Maillon Rapide quick links should be carefully checked at regular intervals. If you are in any doubt about the safety of a quick link after checking, replace it with a new one.
• When fastened with a wrench up to the proper tightening torque, Maillon Rapide quick links are considered a permanent connector.
• Maillon Rapide should always be fitted with parts made of same material.
• When connected with chain, Maillon Rapide quick links should be of the same diameter.
• Never connnect any Maillon Rapide quick links onto a lifting chain.
• Stainless steel Maillon Rapide quick links may be used in salt water.

Zinc Plated Steel
6mm: Weight: 41g, Dimensions: 27 x 70.5mm, PPE: 17.5kN, SWL: 350kgs, Gatewidth: 13mm
7mm: Weight: 60g, Dimensions: 30 x 79mm, PPE: 25kN, SWL: 500kgs, Gatewidth: 16mm
8mm: Weight: 91g, Dimensions: 34 x 88mm, PPE: 33kN, SWL: 650kgs, Gatewidth: 18mm
10mm: Weight: 157g, Dimensions: 44 x 105mm, PPE: 50kN, SWL: 1000kgs, Gatewidth: 20.5mm
12mm: Weight: 268g, Dimensions: 51 x 124mm, PPE: 62kN, SWL: 1250kgs, Gatewidth: 23.5mm
Stainless Steel
3.5mm Wide: Weight: 11g, Internal Dimensions: 10 x 39mm, PPE: 11kN, Gatewidth: 10mm
4mm Wide: Weight: 15g, Internal Dimensions: 20 x 52mm, PPE: 12kN, Gatewidth: 11.5mm
6mm Wide: Weight: 42g, Internal Dimensions: 27 x 71mm, PPE: 29kN, Gatewidth: 14.5mm
7mm Wide: Weight: 61g, Internal Dimensions: 30 x 79mm. PPE: 40kN, Gatewidth: 16mm
8mm Wide: Weight: 85g, Internal Dimensions: 37.5 x 89mm, PPE: 48kN, Gatewidth: 17.5mm
