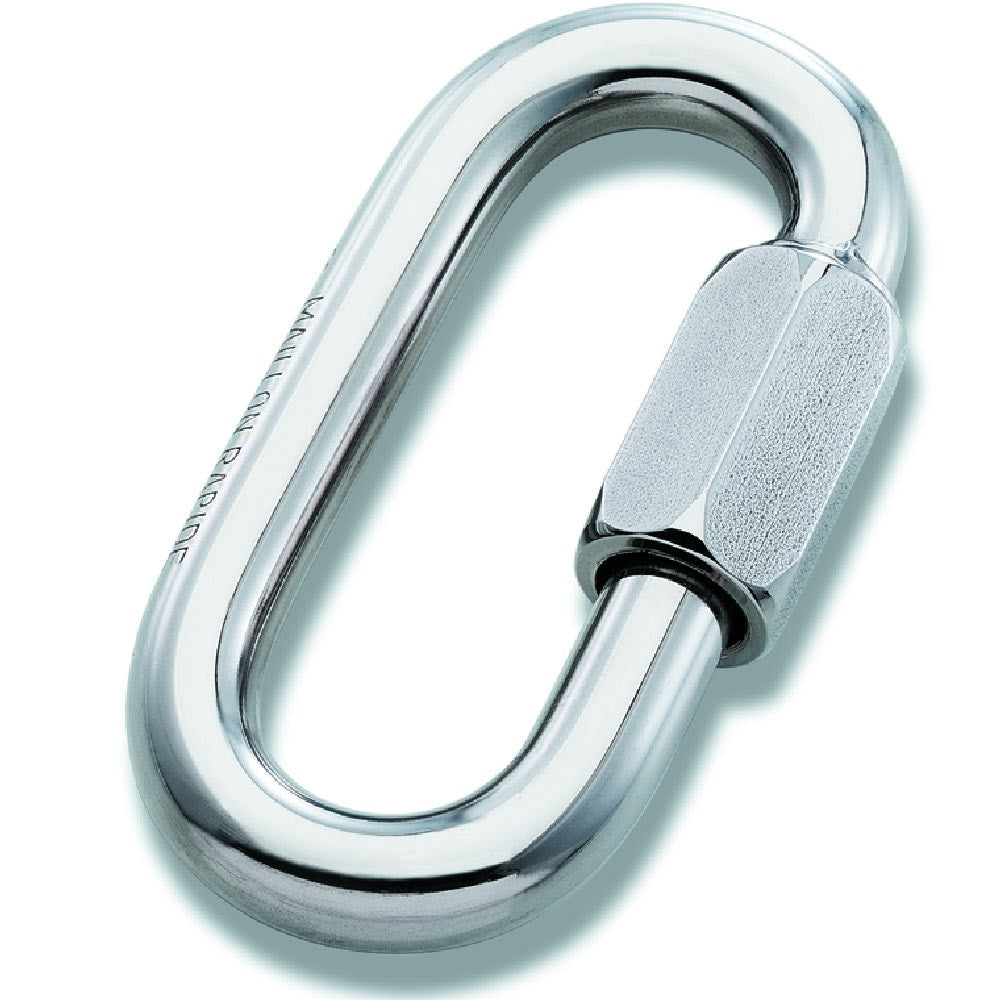

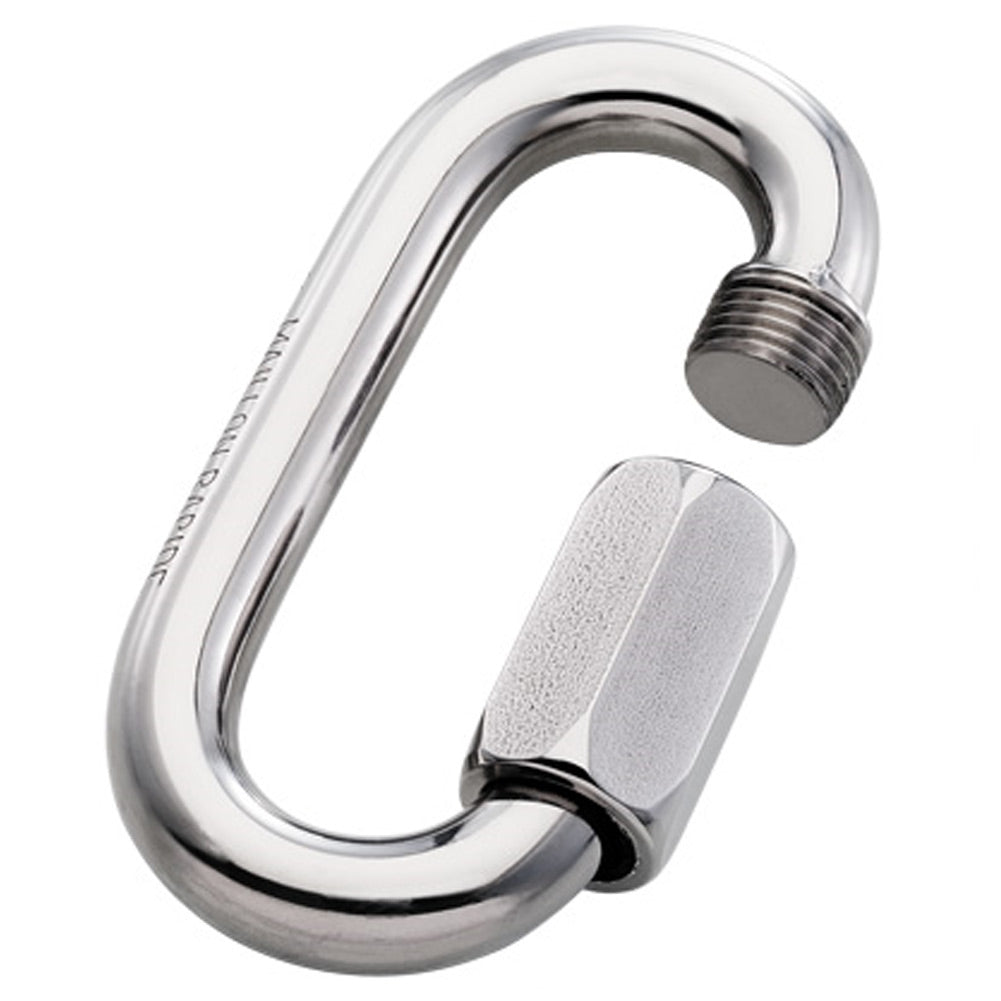

Maillon Rapide Oval Normal

The standard oval shapes are are the most widely used screw-links. They are ideal for connecting to hardware such as bolt hangers or wire cables, and have the highest strength of any screw-link shape for the size of the material. They are also the cheapest option.

• Consider breaking load limit in kN engraved to the rod.
• Visual check of complete nut screwing compulsory, no thread must be showing.
• Maillon Rapide quick links are only to be loaded along the major axis.
• Maillon Rapide quick links should be carefully checked at regular intervals. If you are in any doubt about the safety of a quick link after checking, replace it with a new one.
• When fastened with a wrench up to the proper tightening torque, Maillon Rapide quick links are considered a permanent connector.
• Maillon Rapide should always be fitted with parts made of same material.
• When connected with chain, Maillon Rapide quick links should be of the same diameter.
• Never connnect any Maillon Rapide quick links onto a lifting chain.
• Stainless steel Maillon Rapide quick links may be used in salt water.

ZINC PLATED STEEL
6mm: Weight: 34g, Dimensions: 27 x 57mm, PPE: 20kN, SWL: 400kgs, Gatewidth: 9mm
8mm: Weight: 77g, Dimensions: 34 x 74mm, PPE: 35kN, SWL: 700kgs, Gatewidth: 11mm
10mm: Weight: 137g, Dimensions: 41 x 89mm, PPE: 55kN, SWL: 1100kgs, Gatewidth: 12mm
12mm: Weight: 232g, Dimensions: 45 x 104mm, PPE: 75kN, SWL: 1500kgs, Gatewidth: 15mm

STAINLESS STEEL
3mm Normal: Weight: 5g, Internal Dimensions: 25 x 8.5mm, PPE: 8kN, Gatewidth: 4mm
5mm Normal: Weight: 21g, Internal Dimensions: 39.5 x 13mm, PPE: 23kN, Gatewidth: 7mm
7mm Normal: Weight: 52g, Internal Dimensions: 52 x 16mm, PPE: 45kN, Gatewidth: 10mm
8mm Normal: Weight: 79g, Internal Dimensions: 58 x 17.5mm, PPE: 55kN, Gatewidth: 11mm
10mm Normal: Weight:140g, Internal Dimensions: 69 x 20.5mm, PPE: 90kN, Gatewidth: 12mm
12mm Normal: Weight: 238g, Internal Dimensions: 80.5 x 23.5mm, PPE: 125kN, Gatewidth: 15mm
