Black Diamond Camalot X4 Offset

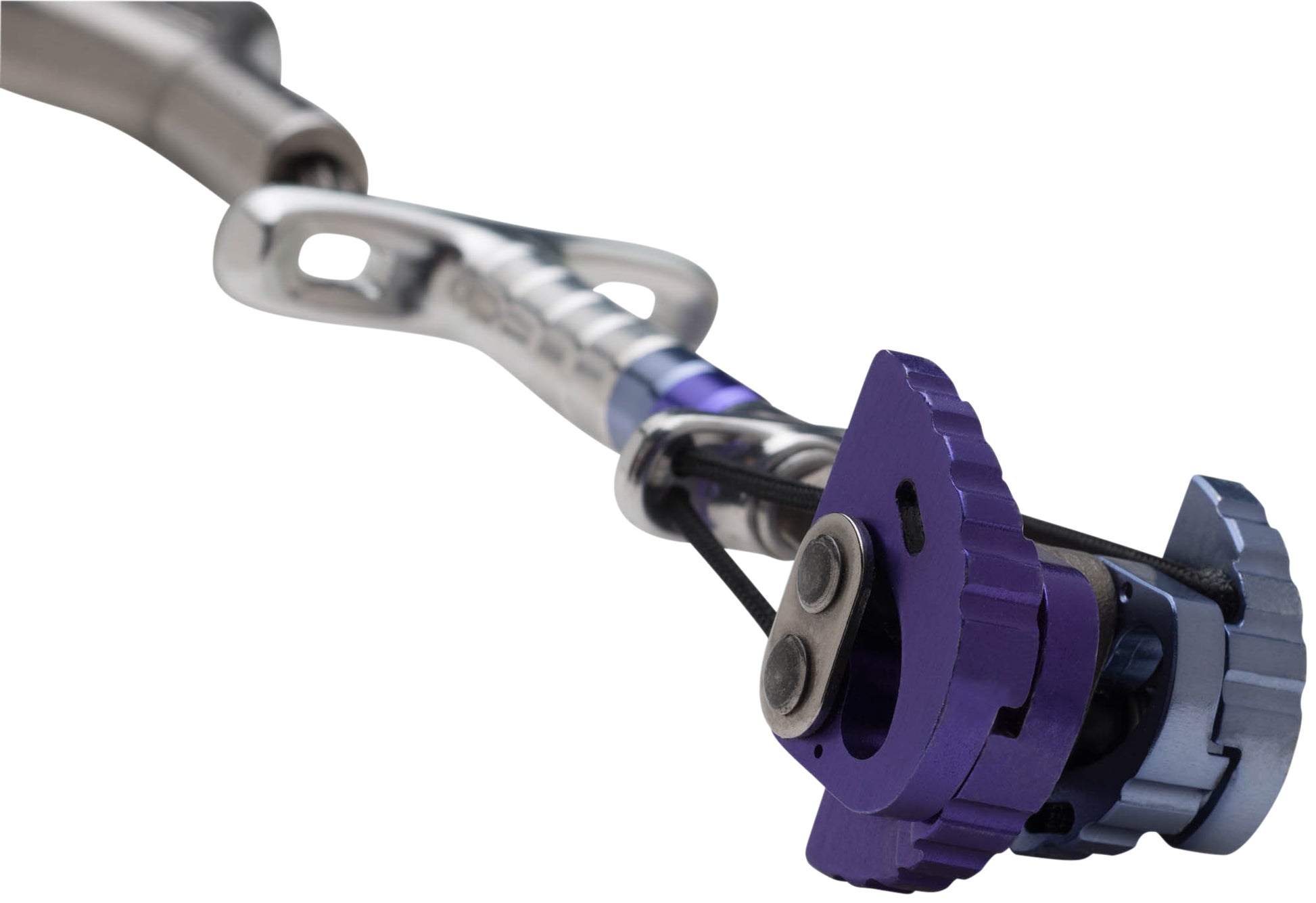

Designed to protect where no other cam can, the Camalot X4 Offset merges the unparalleled expansion range of Camalots with an offset lobe design for pin scars, flares and other non-uniform placements. The X4's embedded cam springs allow for a super-narrow head width, and the flexible stem features aluminum protection beads to protect the cable without compromising flexibility. The X4 Offset also features anodized lobes and a colour-coded Dyneema sling for quick identification.

• Double axle (.75/ .5 and .5/.4) and Stacked Axle Technology (.4/.3, .3/.2 and .2/.1) provide huge expansion range
• Narrow head width and offset lobe design fit securely in non-uniform placements

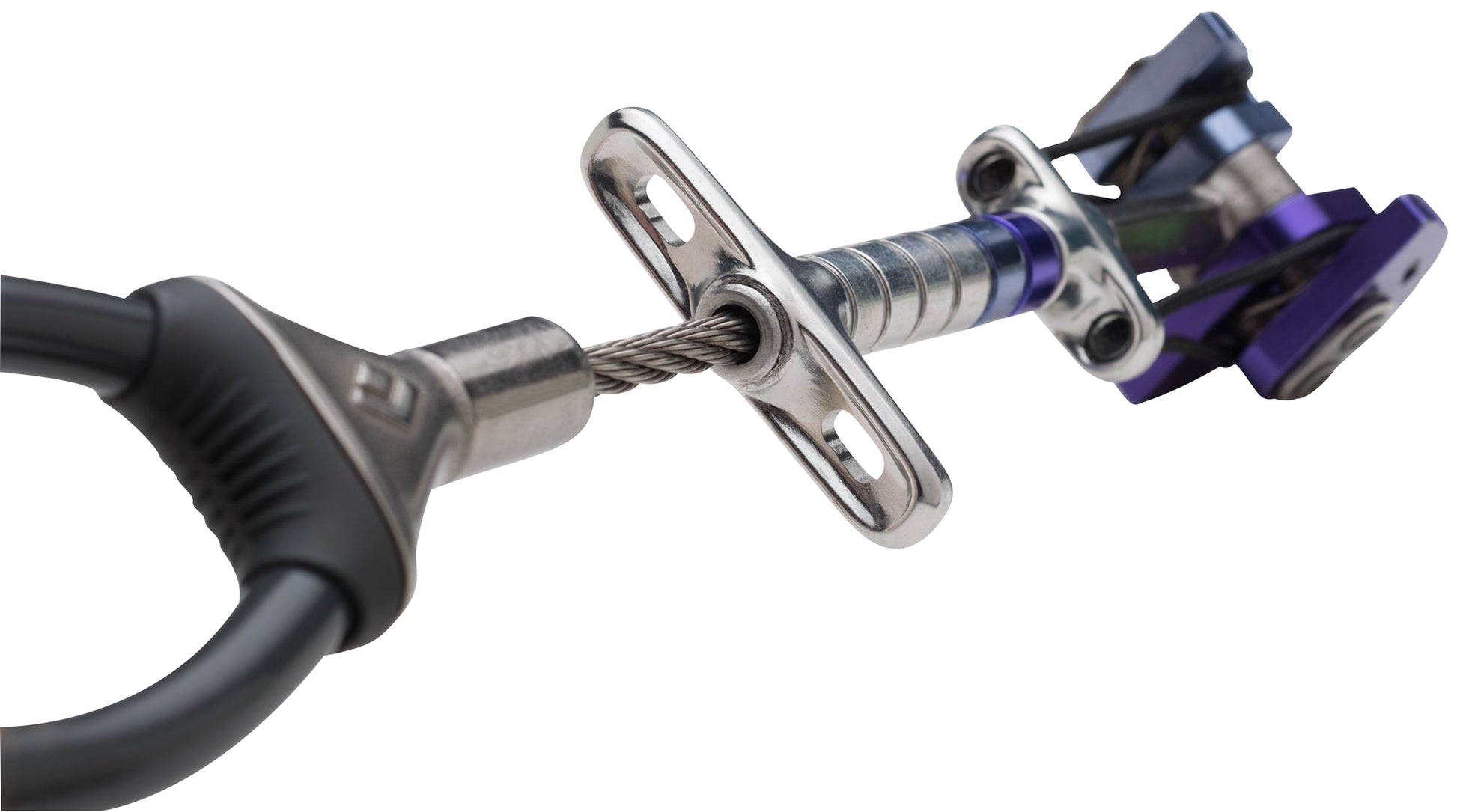

• Aluminum armor beads protect cable stem without compromising flexibility

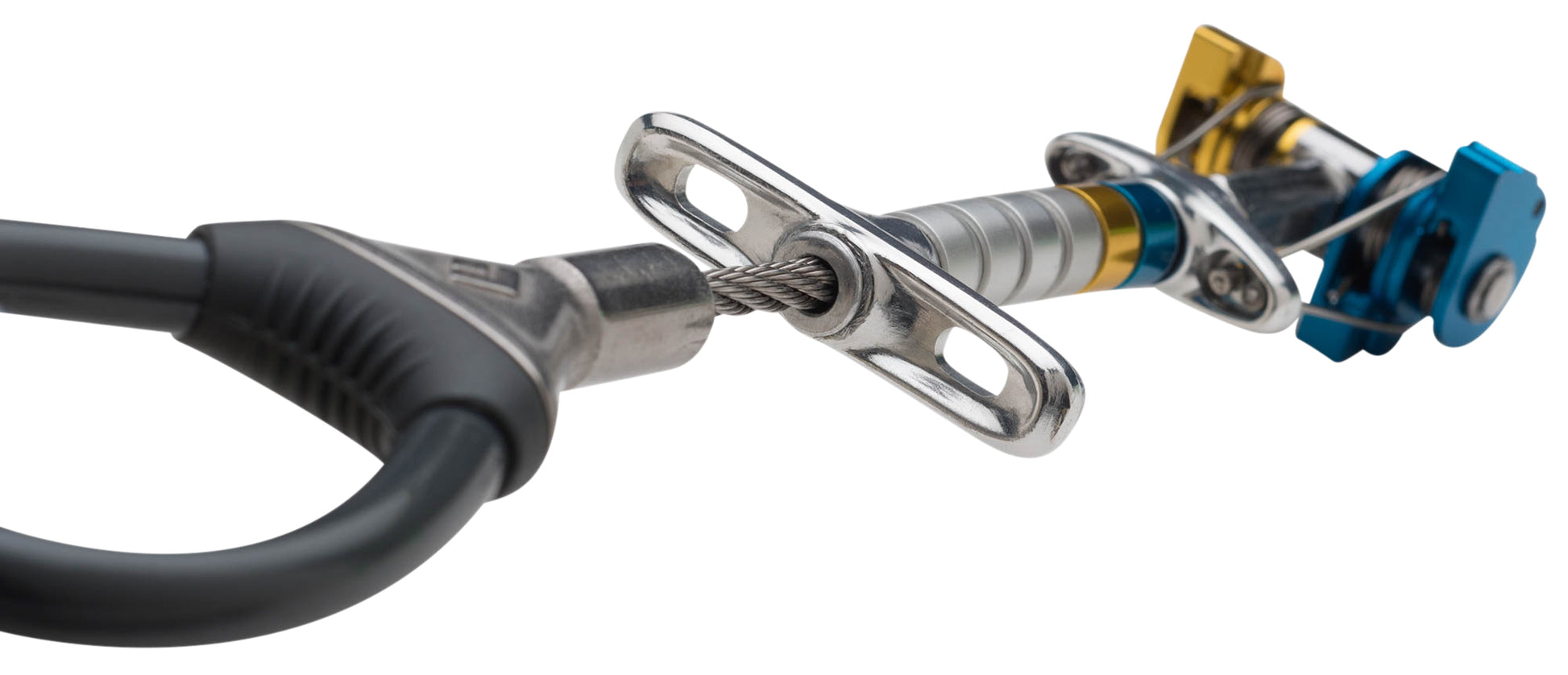

• Symmetric swage and hot-forged trigger bar provide strength and ergonomic handling

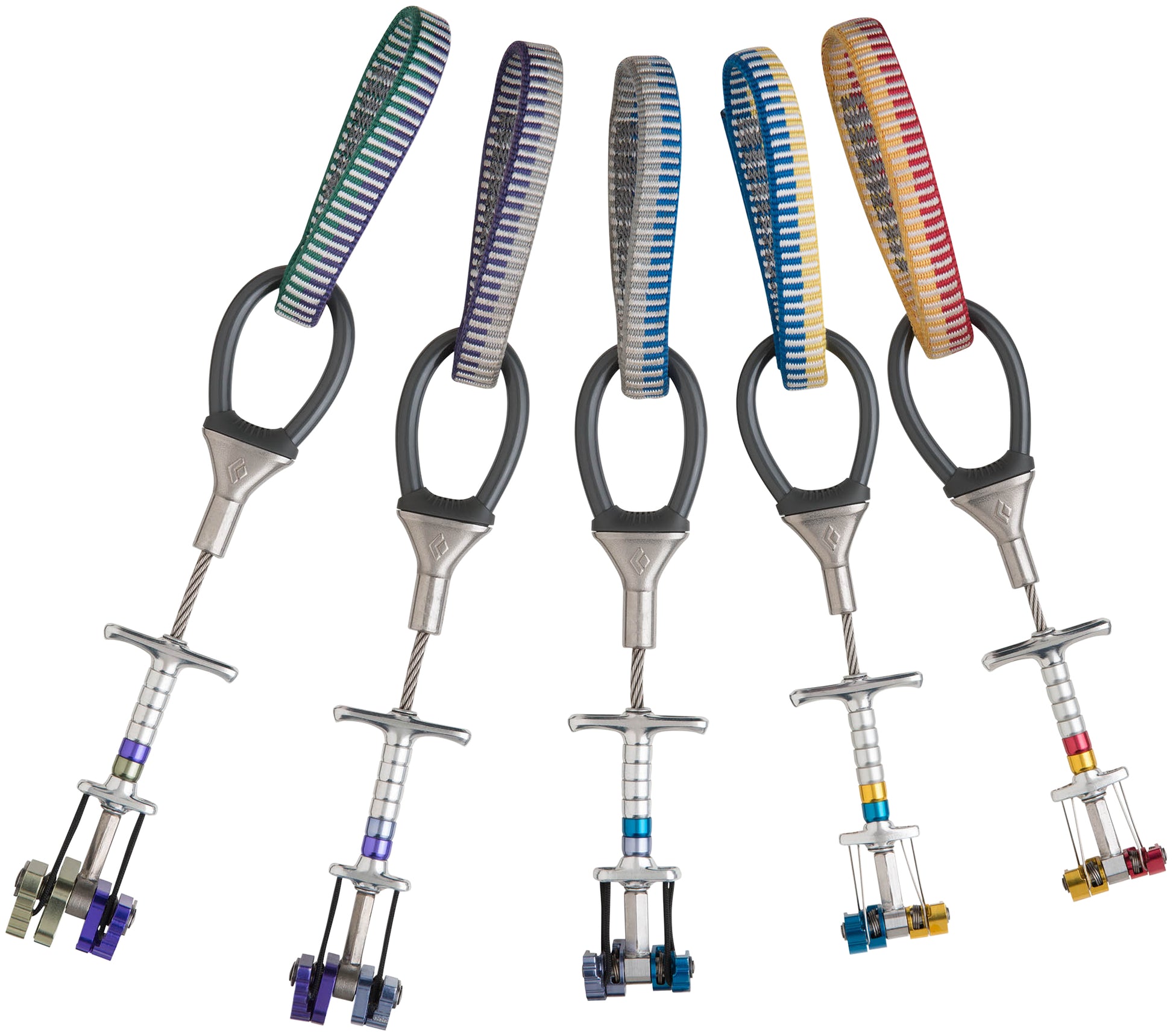

• Anodized outside lobes and lightweight, yet durable colour-coded Dyneema sling for easy identification and differentiation

Weight:

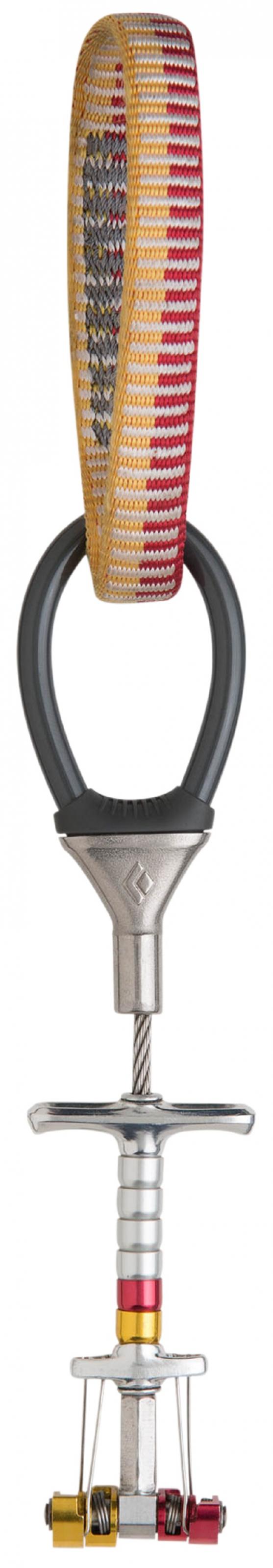

[.1/.2] 53 g (1.9 oz)

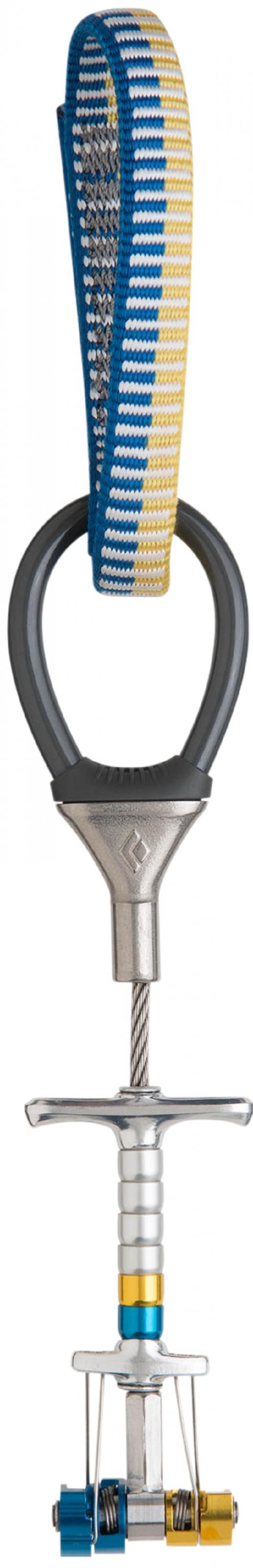

[.2/.3] 64 g (2.2 oz)
[.3/.4] 78 g (3 oz)
[.4/.5] 86 g (3.1 oz)

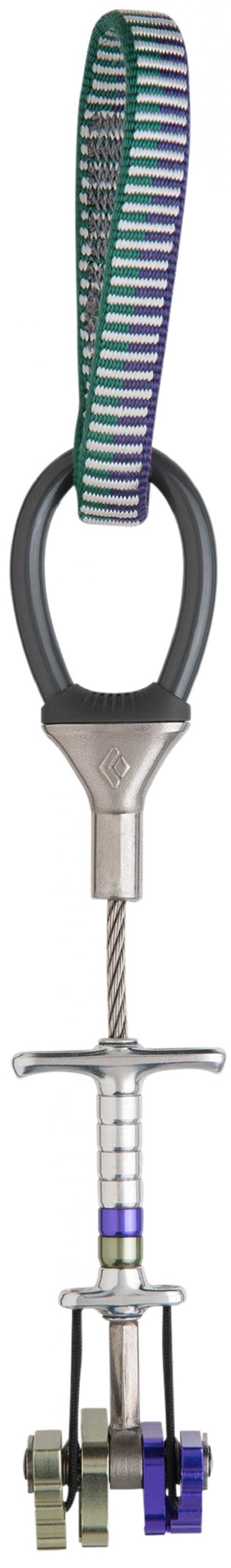

[.5/.75] 101 g (3.5 oz)

Strength:
[.1/.2] 5 kN (1,124 lbf)
[.2/.3] 6 kN (1,349 lbf)
[.3/.4] 8 kN (1,798 lbf)
[.4/.5] 9 kN (2,023 lbf)
[.5/.75] 9 kN (2,023 lbf)

Range:
[.1/.2] 8.4-13.8 mm/9.9-16.5 mm (.33-.54 in/.34-.65 in)
[.2/.3] 9.9-16.5 mm/12.4-21.2 mm (.34-.65 in/.49-.83 in)
[.3/.4] 12.4-21.2 mm/15.5-26.2 mm (.49-.83 in/.61-1.05 in)
[.4/.5] 15.5-26.6 mm/19.8-33.7 mm (.61-1.05 in/.78-1.33 in)
[.5/.75] 19.8-33.7 mm/24-41.2 mm (.78-1.33 in/.94-1.62 in)
